JJ EL34

21.0021.00 Excl. VATIncl. VAT

44 in stock (can be backordered)

Guaranteed Safe Checkout

Description

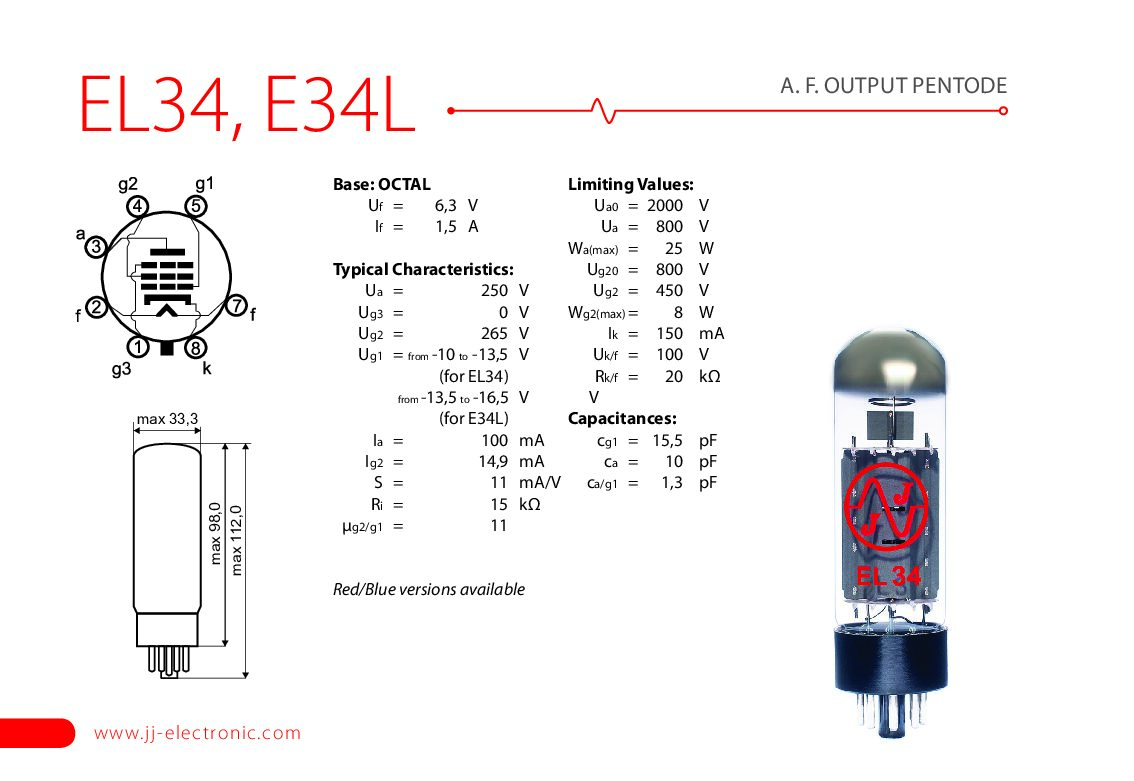

Datasheet:
EL34

A. F. OUTPUT PENTODE
EL34 is an octal power tube with a maximum plate power of 25W. Very robust and reliable due to its internal construction.

Base: OCTAL
Uf = 6,3 V
If = ca 1,5 A

Typical characteristic:
Ua = 250 V
Ug3 = 0 V
Ug2 = 265 V
Ug1 =
-10 V; -13,5 V (for EL34)
-13,5 V; -16,5 V(for E34L)
Ia = 100 mA
Ig2 = 14,9 mA
S = 11 mA/V
Ri = 15 kΩ
μg2/g1 = 11
Iaz (Ug1 = -30 V) < 7 mA
