DIN1527 Transformer Unit
€123.00€123.00 Excl. VATIncl. VAT| Provides galvanic isolation and splitting 1 direct + 1 isolated. It is suitable for low-to-medium signal levels. |
DIN1581XL Transformer Splitting Unit
€155.00€155.00 Excl. VATIncl. VAT| Provides galvanic isolation and splitting 1 direct + 1 isolated. It is suitable for medium-to-high signal levels. |
DIN1588 High Level Transformer Unit
€158.00€158.00 Excl. VATIncl. VAT| Is intended for splitting 1 direct + 2 isolated. It is suitable for mic and line level signals up to +13 dBU. |
LL1527 General Purpose Transformer
€75.00€75.00 Excl. VATIncl. VAT| 1+1 : 1+1 | 38x24x17 | +16 dBU | The “standard” problem solver. Ground isolation, MS decoding, splitting 1 direct + 1 isolated outputs. Mic input 200:800 Ω. |
LL1527A Microphone Split Transformer / Line Bridging Transformer
€75.00€75.00 Excl. VATIncl. VAT
| 1+1 : 1+1 | 38x24x17 | +16 dBU | As LL 1527. Secondary shields available individually on connector pins. |
LL1527XL General Purpose Transformer
€88.00€88.00 Excl. VATIncl. VAT| 1+1 :1+1 | 38x24x20.5 | +19 dBU | As LL1527, but with + 3 dB level capability compared to the LL1527. |
LL1532 General Purpose Transformer
€68.00€68.00 Excl. VATIncl. VAT| 1+1 : 2 | 28x17x15 | +10 dBU | A small size audio transformer. For isolation and microphone input (200:800 Ω). |

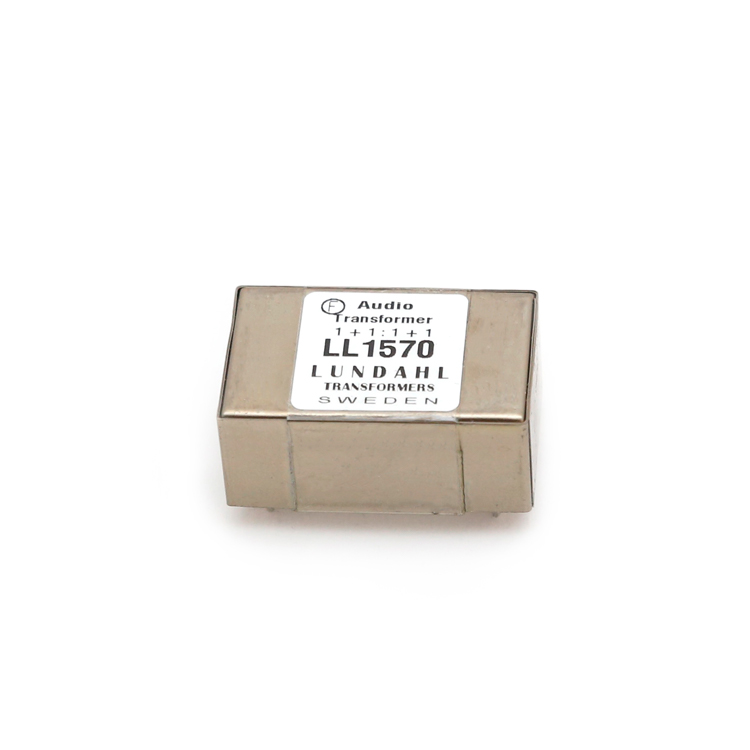

LL1570 Mic Input, Mic Splitting And Mic & Line Isolation Transformer
€80.00€80.00 Excl. VATIncl. VAT| 1+1 : 1+1 | 38x24x17 | +16 dBU | Splitting 1 direct + 1 isolated outputs. Extra wide bandwidth. Microphone input (200 : 800 Ω). |

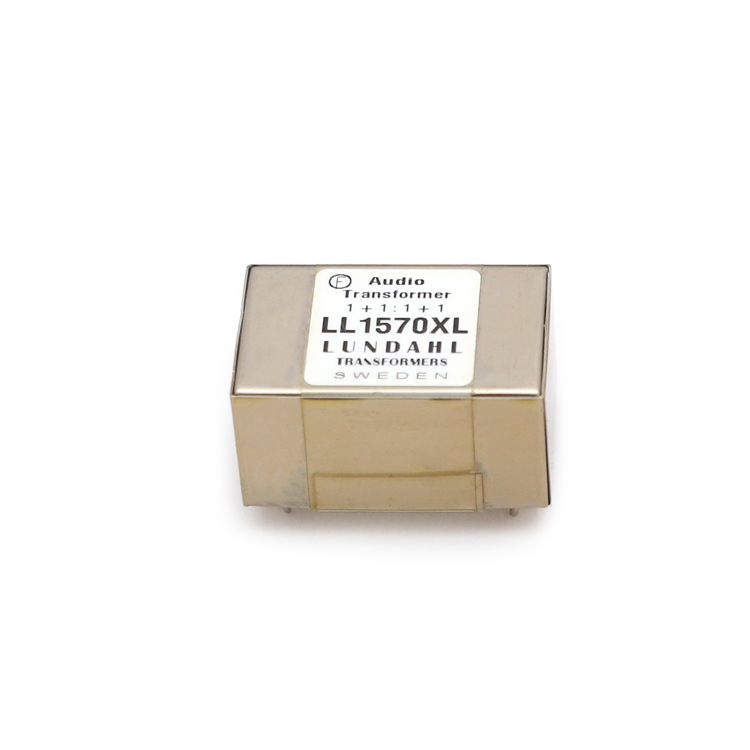

LL1570XL Mic Input, Mic Splitting And Mic & Line Isolation Transformer
€93.00€93.00 Excl. VATIncl. VAT| 1+1 : 1+1 | 38x24x20.5 | +19 dBU | As LL1570, but with + 3 dB level capability compared to the LL1570. |
LL1581XL Splitting Transformer
€103.00€103.00 Excl. VATIncl. VAT| 1+1 : 1+1 | 38x24x20.5 | +13 dBU (Prim. in parallel) | Splitting 1 direct + 2 isolated outputs. Very high immunity to external magnetic fields and to large ground differences. |

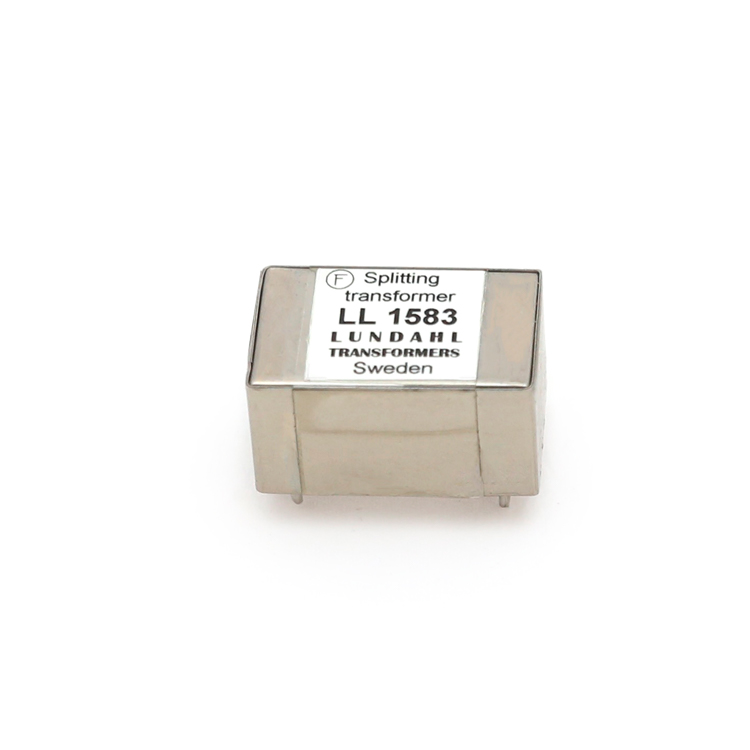

LL1583 Small Size Splitting Transformer
€81.00€81.00 Excl. VATIncl. VAT| 1 : 1+1 | 28x17x15 | +8 dBU | Splitting 1 direct + 2 isolated outputs. Small size mic. level transformer with the same excellent noise immunity as the LL1581XL. |

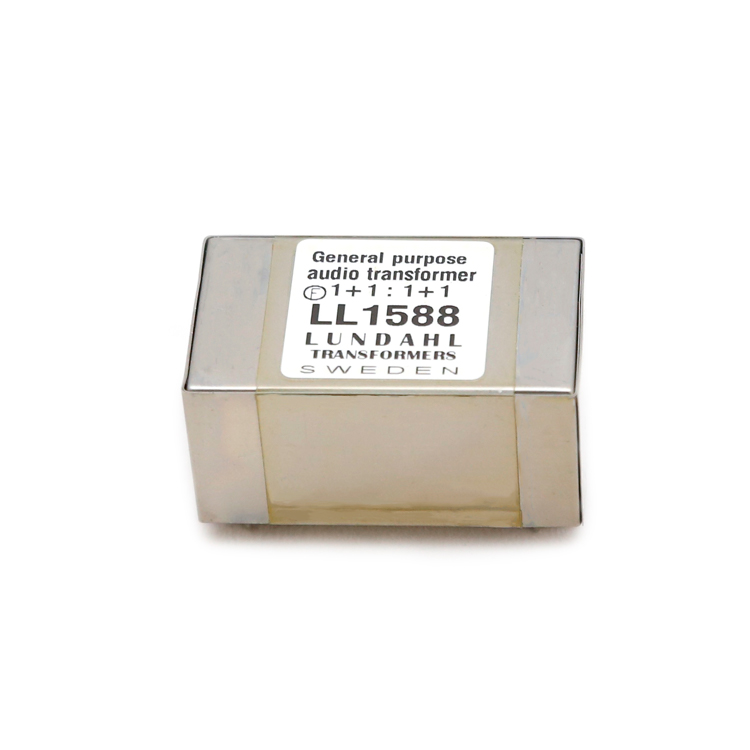

LL1588 High Level General Purpose Transformer
€106.00€106.00 Excl. VATIncl. VAT| 1+1 : 1+1 | 47x28x24 | +28 dBU | High level isolation applications 1:2 microphone input. Phase splitting. |

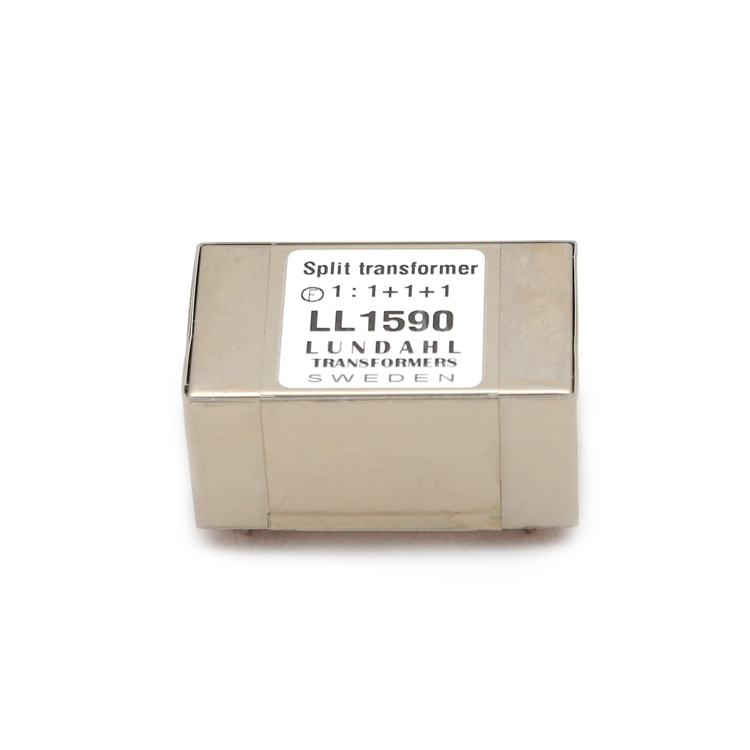

LL1590 Splitting Transformer, 1 Direct + 3 Isolated
€154.00€154.00 Excl. VATIncl. VAT| 1 : 1+1+1 | 47x28x23 | +13 dBU | Splitting1 direct + 3 isolated outputs. |

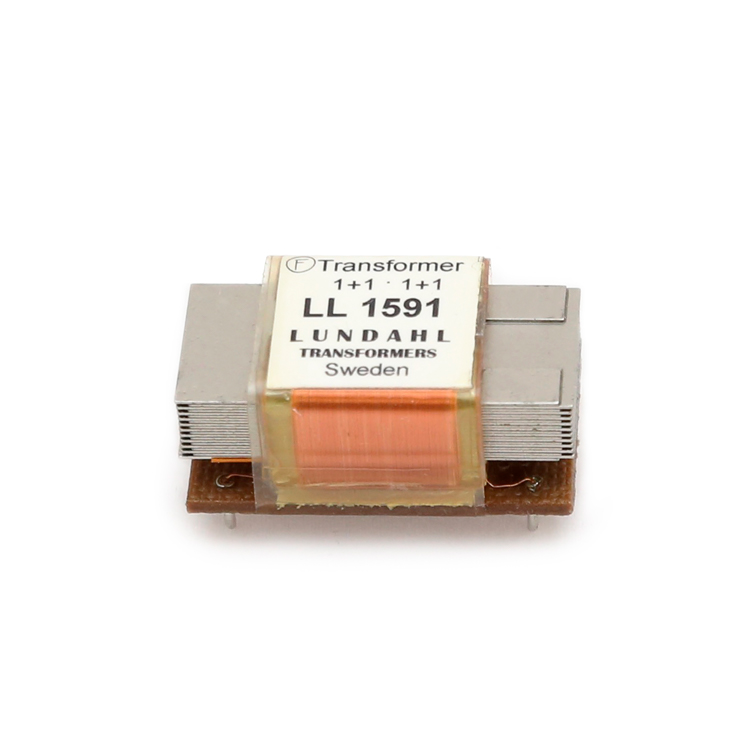

LL1591 Low Cost Audio Isolation Transformer
€44.00€44.00 Excl. VATIncl. VAT| 1+1 : 1+1 | 37x22x17 | +16 dBU | ”Naked” LL1527 -> no Faraday shields and no mu metal housing. Not for demanding applications. |

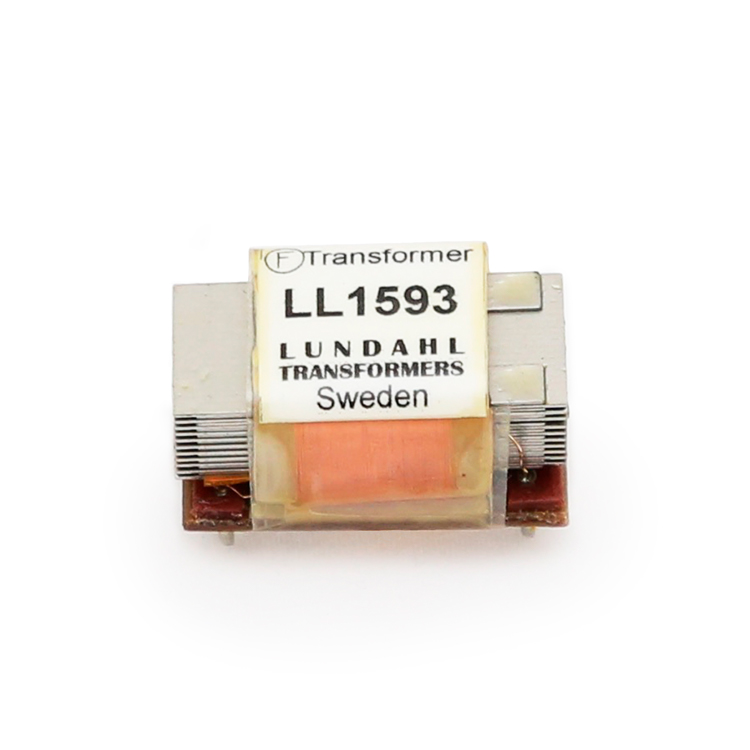

LL1593 General Purpose Transformer
€43.00€43.00 Excl. VATIncl. VAT| 1+1 : 2 | 28x17x14 | +12 dBU | ”Naked” LL1532 -> no Faraday shields and no mu metal housing. Not for demanding applications. |
LL1684 High Level General Purpose Transformer
€144.00€144.00 Excl. VATIncl. VAT| 1+1 : 1+1 | 42x28x22 | +25 dBU | Amorphous core version of LL1588. High level isolation applications 1:2 microphone input. Phase splitting. |
LL7902 Line Input / General Purpose Transformer
€154.00€154.00 Excl. VATIncl. VAT| 1+1+1+1 : 1+1+1+1 | 66x32x21 | +28 dBU | General purpose. Very high quality line input for 1:1, step-down or step-up. |

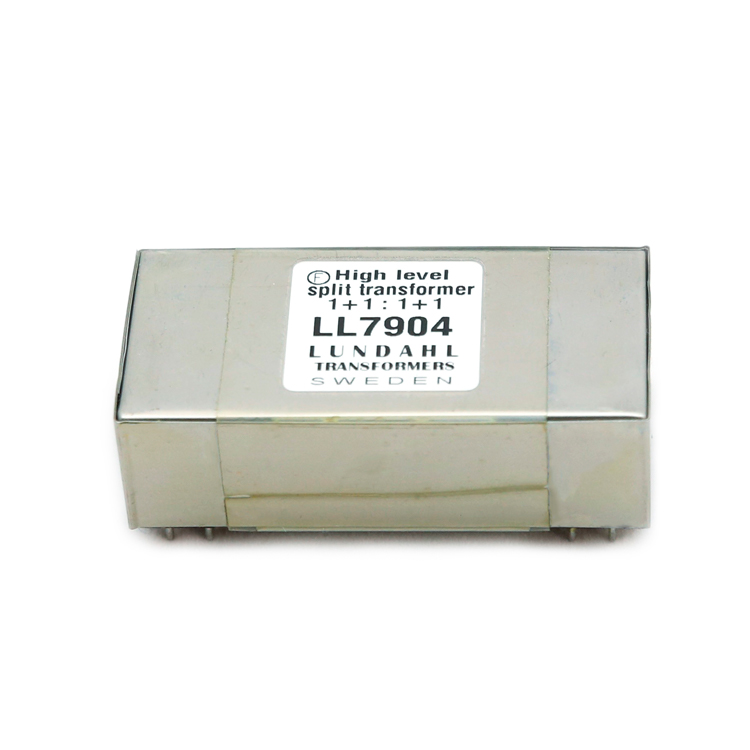

LL7904 High Level Splitting Transformer
€164.00€164.00 Excl. VATIncl. VAT| 1+1: 1+1 | 66x32x21 | +23dBU (Prim. in parallel) | Very high level splitting transformer for 1 direct + 2 isolated outputs. Very high immunity to external magnetic fields and to large ground differences. |
