JJ 6L6GC

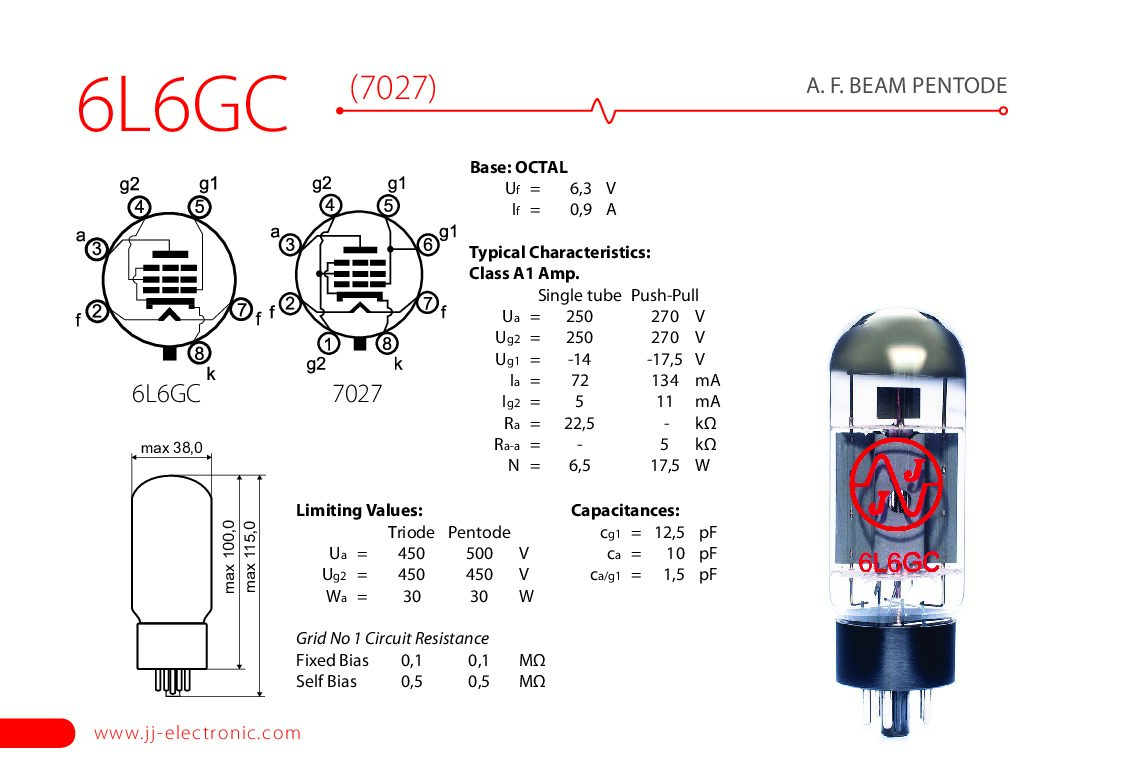

Datasheet:
6L6GC

6L6GC – 7027 A  is a beam power pentode with an octal base and power of 30W for use in 6L6 amplifiers. It has a lot of headroom and a fat, solid tone. Thanks to its robust construction it is very reliable.

A. F. BEAM PENTODE
Base: OCTAL
Uf = 6,3 V
If = 0,9 A

Typical characteristic:
Class A1
Singl tube / Push-Pull
Ua = 250 V / 270 V
Ug2 = 250 V / 270 V
Ug1 = -14 V / -17,5 V
Ia = 72 mA / 134 mA
Ig2 = 5 mA / 11 mA
Ra = 22,5 kΩ / –
Ra-a =  / 5 kΩ
N = 6,5 W / 17,5 W
