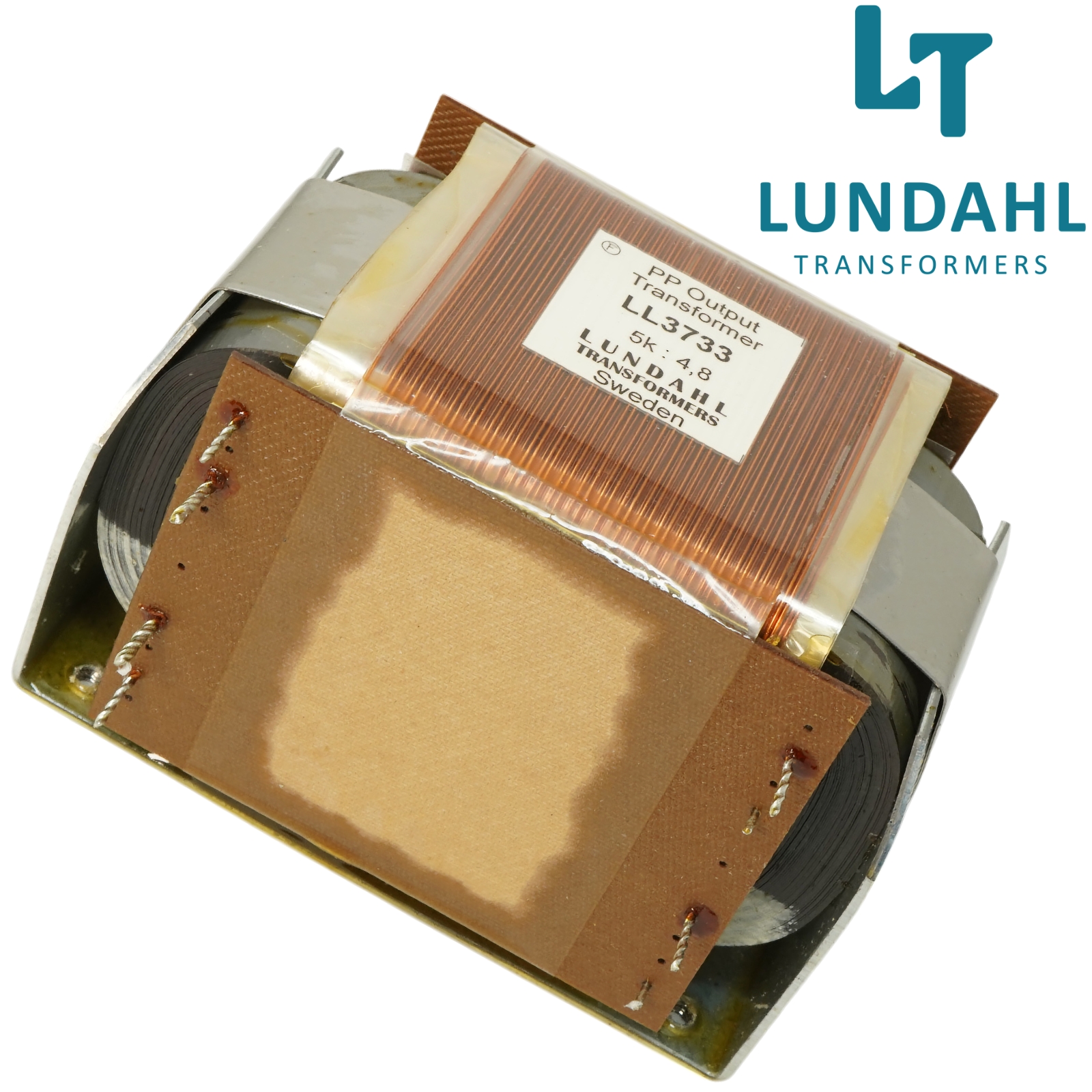

LL3733 Output Transformer
€321.00€321.00 Excl. VATIncl. VAT
This transformer is made to order
This is a non-stock item. Please allow about 4 weeks for dispatch.
Guaranteed Safe Checkout
Description
The LL3733 is a push-pull tube amplifier output transformer with 50% UL taps and a separate winding for 2%
NFB. The transformer is built up from two coils, each consisting of 3 sections, one primary and two secondary
sections. The secondary sections are tapped for 5 and 8 ohms load. The windings are arranged to minimize
destructive capacitive coupling between primaries and secondaries, and for extremely small phase error between
anode and UL tap. The C core is a high-quality grain-oriented silicon steel C-core from our own production.
Made to order – typical lead time 4 weeks.
Additional information
| Weight | 2.5 kg |
|---|---|
| Dimensions | 130 × 110 × 90 mm |
