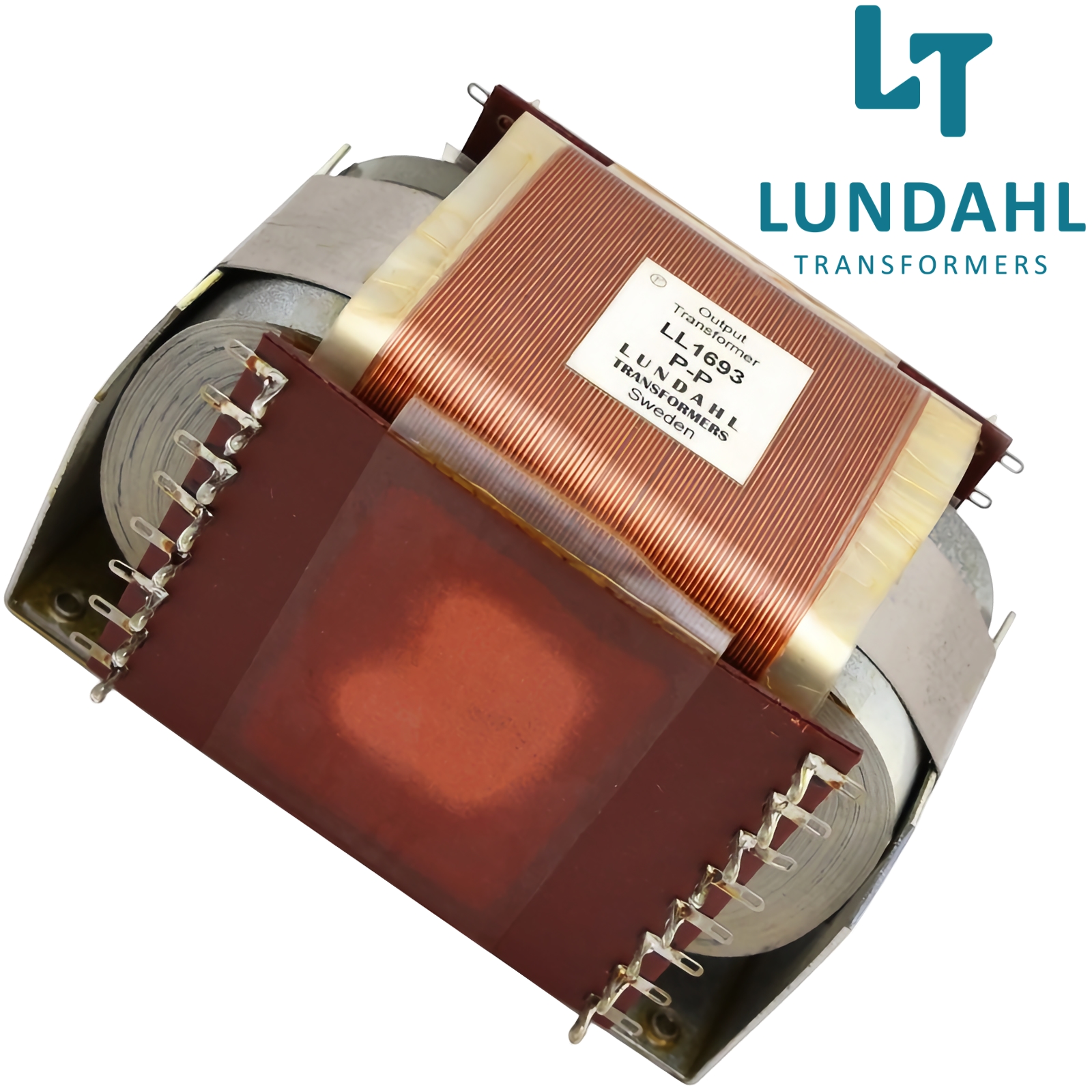

LL1693 Output Transformer
€362.45€362.45 Excl. VATIncl. VAT
This transformer is made to order
This is a non-stock item. Please allow about 4 weeks for dispatch.
Guaranteed Safe Checkout
Description
The LL1693 transformer is offered in two configurations:
Push-pull
Single-ended, 230 mA
(The air-gap is designed to handle the DC current from the output tube without driving the core into saturation, ensuring adequate headroom for the audio signal.)
The transformer’s primary and secondary impedances can be configured by wiring the exposed solder pins in different combinations of the internal winding sections.
Available impedance options
| Primary | Secondary |
|---|---|
| 2.3kΩ | 8Ω or 16Ω |
| 1kΩ | 8Ω or 16Ω |
| 600Ω | 8Ω or 16Ω |
Made to order – typical lead time 4 weeks.
Additional information
| Weight | 4 kg |
|---|---|
| Dimensions | 130 × 110 × 90 mm |
| Type |
PP ,230mA-SE |
