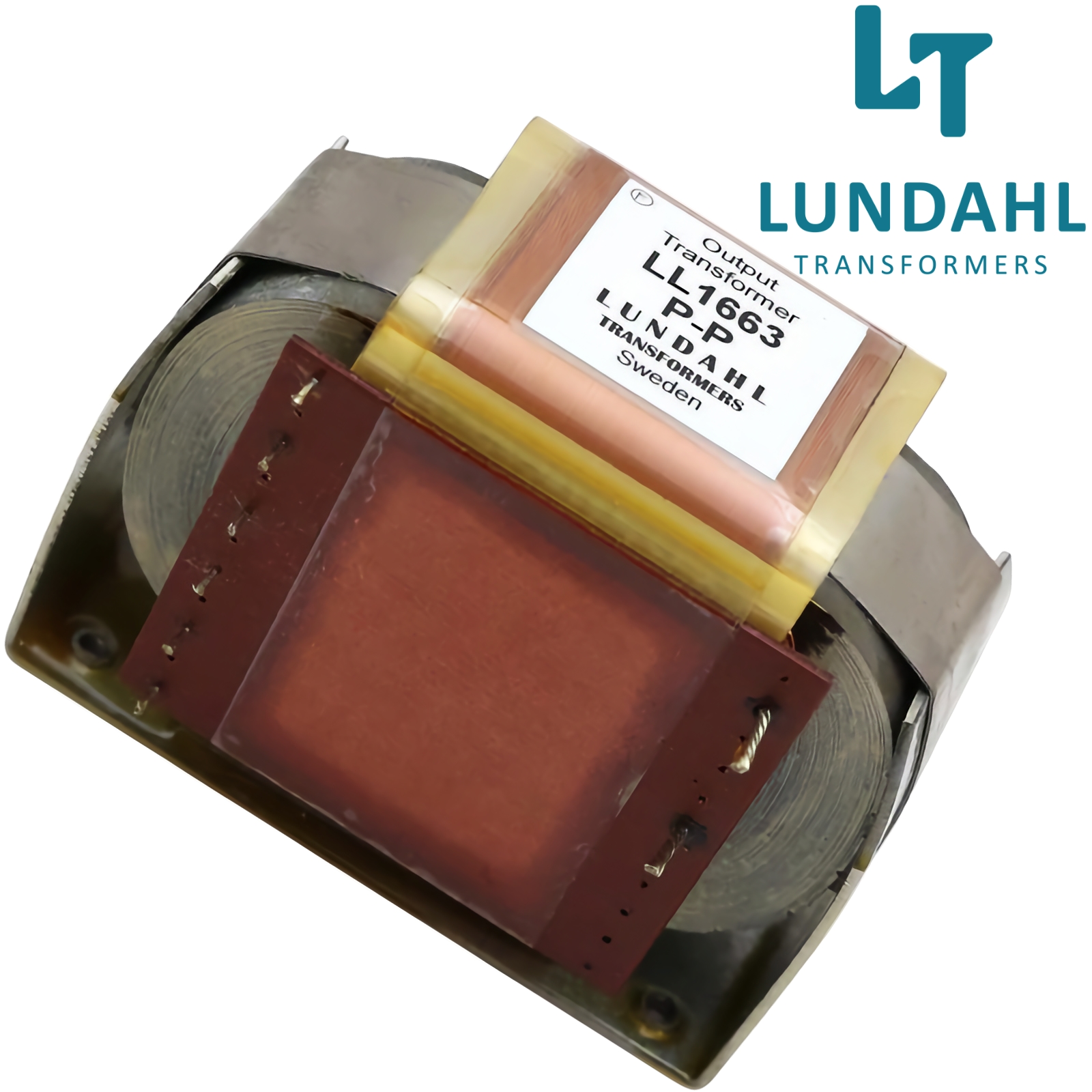

LL1663 Output Transformer
€150.18€150.18 €331.36€331.36Price range: €150.18€150.18 through €331.36€331.36 Excl. VATIncl. VAT
This transformer is made to order
This is a non-stock item. Please allow about 4 weeks for dispatch.
Guaranteed Safe Checkout
Description
The LL1663 transformer is offered in three factory-set configurations, each with a different air-gap optimized for its intended operating mode:
-
Push-pull
-
Single-ended, 50 mA
-
Single-ended, 100 mA
(The air-gap is designed to handle the DC current from the output tube without driving the core into saturation, ensuring adequate headroom for the audio signal.)
You can also choose between two types of C-core materials:
-
Silicon-iron
-
Amorphous-iron (AM)
The transformer’s primary and secondary impedances can be configured by wiring the exposed solder pins in different combinations of the internal winding sections.
Available impedance options
| Primary | Secondary |
|---|---|
| 5 kΩ | 8 Ω |
Overall dimensions (including pins): 118 × 85 × 78 mm
Made to order – typical lead time 4 weeks.
Additional information
| Weight | 2.5 kg |
|---|---|
| Dimensions | 130 × 110 × 90 mm |
| Type |
PP ,50mA-SE ,100mA-SE |
| Core Material |
Silicone (Standard) ,Amorphous (AM) |
Customer Reviews
Only logged in customers who have purchased this product may leave a review.
Related Products
LL1623 Output Transformer
€241.82€241.82 €423.09€423.09Price range: €241.82€241.82 through €423.09€423.09 Excl. VATIncl. VAT

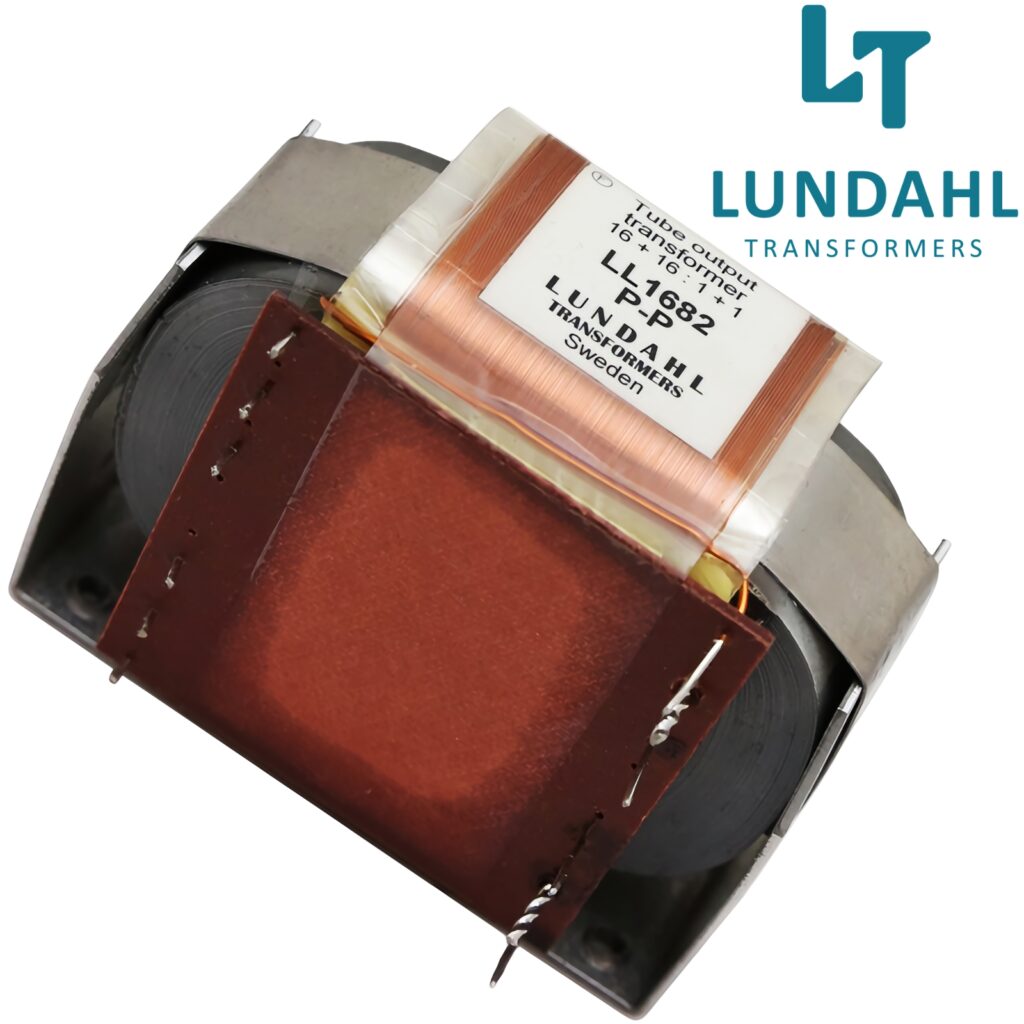

LL1682 Output Transformer
